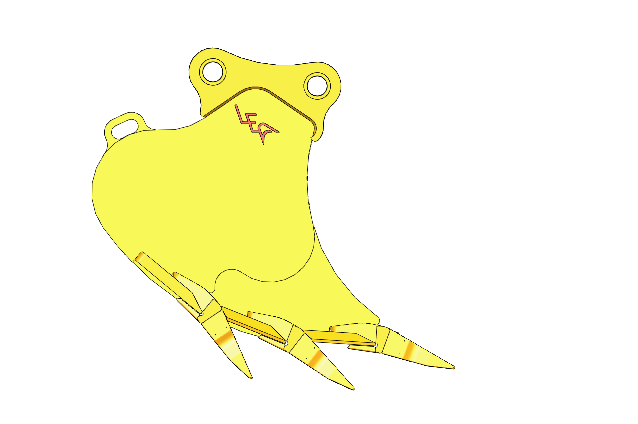

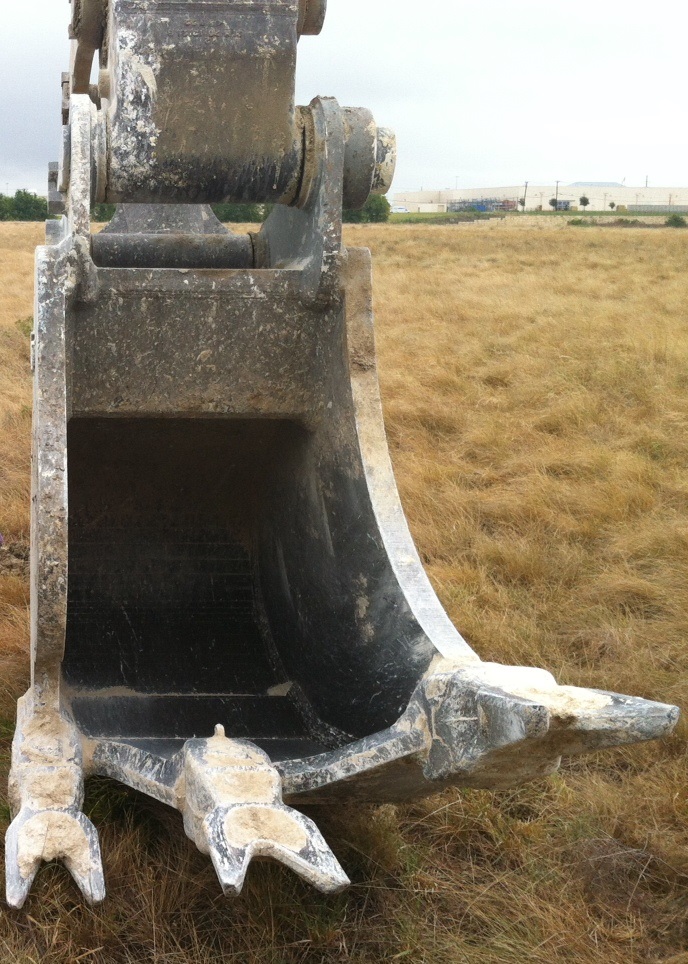

Leading Edge Attachments, Inc.Ã‚Â® now offers the patented Multi-RipperÃ‚Â® TalonTM Bucket as the new addition to the Multi-Ripper SHARC Product line. LEA Multi-Ripper Products have shown to replace hammers, blasting and rock trenchers, for a fraction of the cost. Designed mainly for utility pipeline contractors, the new Multi-Ripper Talon Bucket works on the same principal as the award winning Multi-Ripper Bucket, except the bucket is very narrow, and the leading edges have been redesigned so that the center rib can be eliminated, thus improving capacity fill and dumping for a narrow bucket. The performance of this style bucket greatly exceeds all other designs of rock bucket ripper combinations and has saved hundreds of thousands of dollars by avoiding the use of rock trenchers, hammers and blasting. The Multi-Ripper Talon Bucket is the newest addition to the highest quality and most productive rock ripper bucket combinations available on the market.

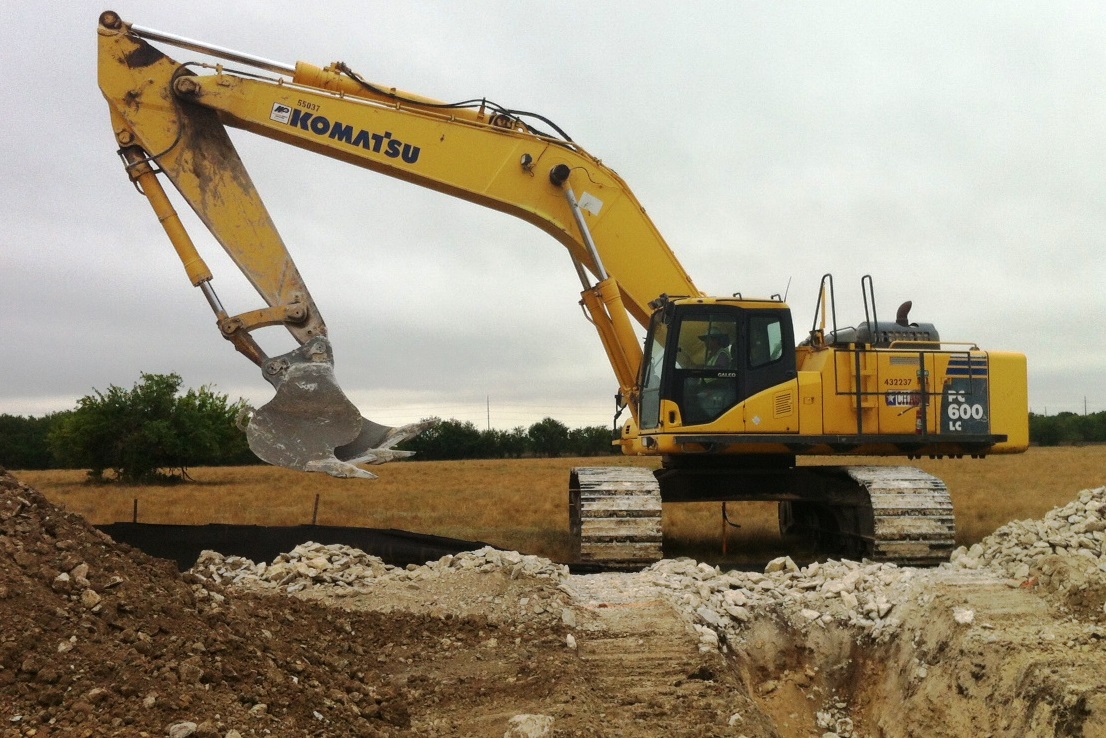

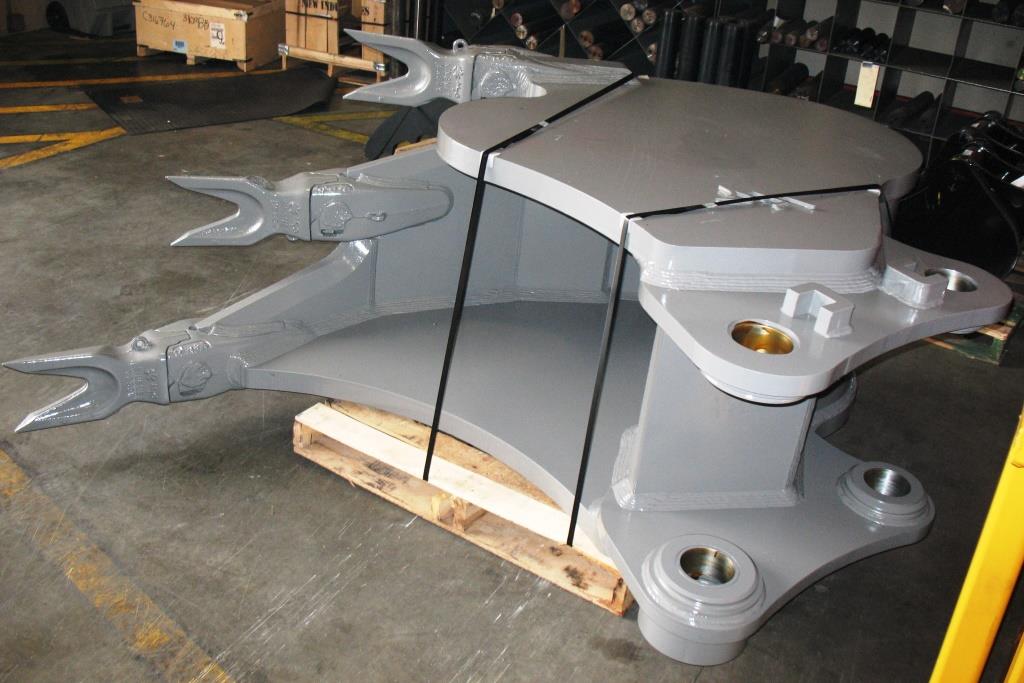

The Multi-Ripper Talon Bucket utilizes the worldwide patented SHARCTM (SHanks on an ARC) Technology, meaning that the bucket functions similarly to that of a trencher except it uses the hydraulic excavator rolling action to rip. The staggered ripper teeth fracture the substrate in sequential order, so that the rolling of the Multi-Ripper Talon Bucket, by extending the bucket cylinder, always provides maximum breakout force applied sequentially to each tooth, one tooth at a time. The results are flat ripped sides and bottom surfaces replacing rock trenchers for a tremendous cost savings. LEA, Inc. Products will be shown in Las Vegas Conexpo 2014 in Central 1 Hall Booth 31040.
How do I benefit?
The Multi-Ripper Talon Bucket Multi-plies Your Money!
It lets you do what you couldn't do before!
It increases the effective size of your machine!
How does it do this?

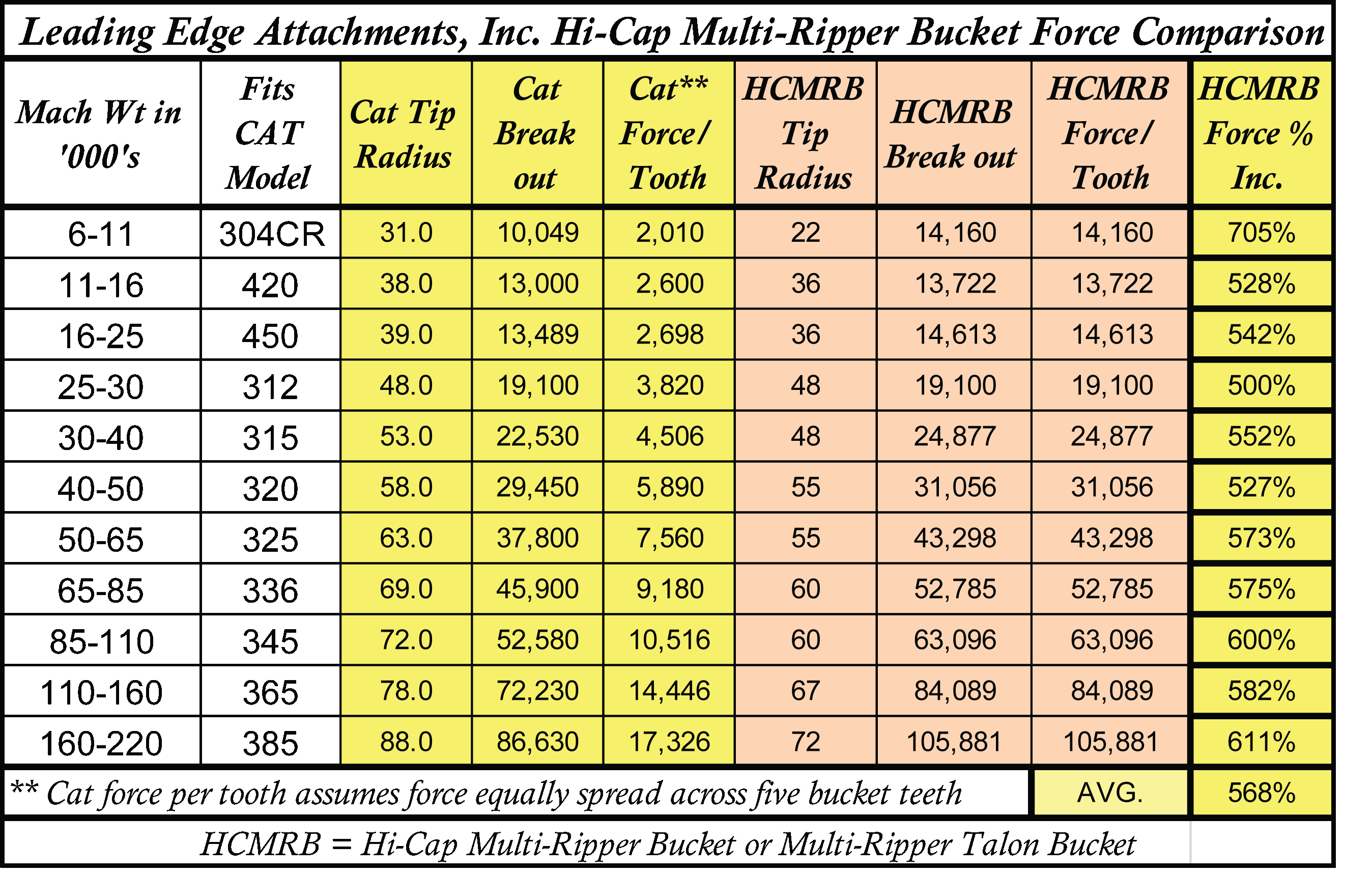

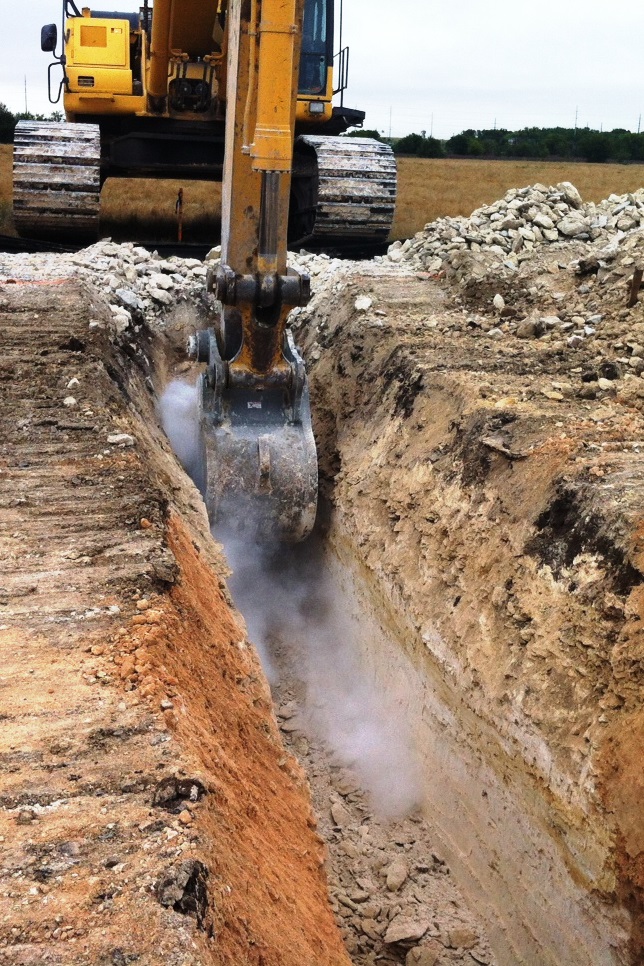

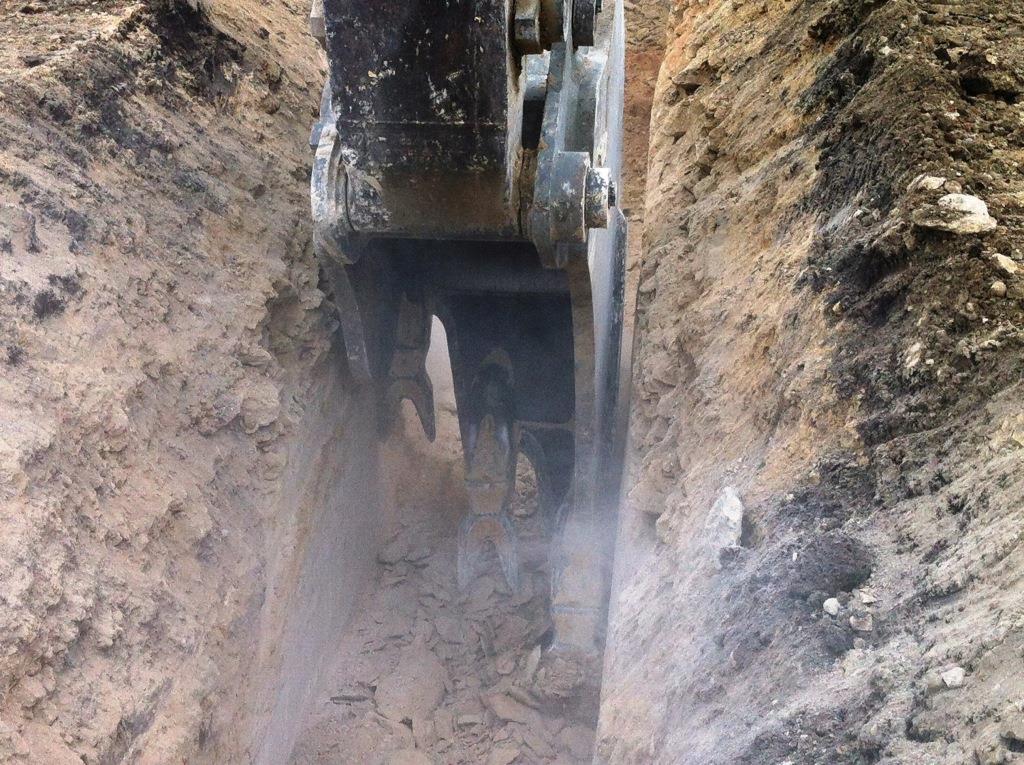

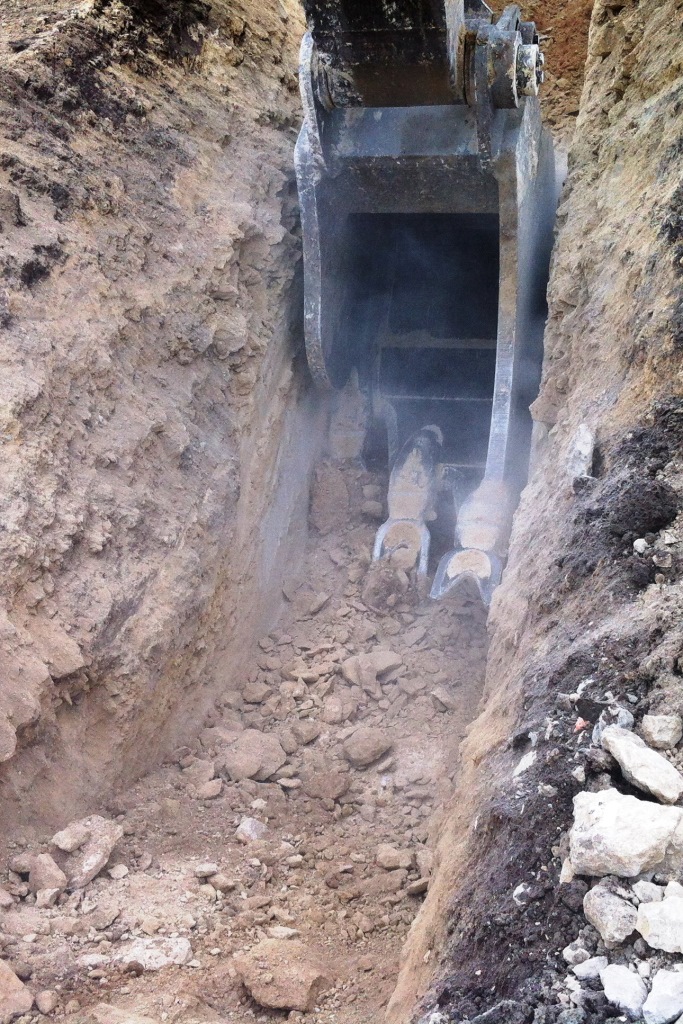

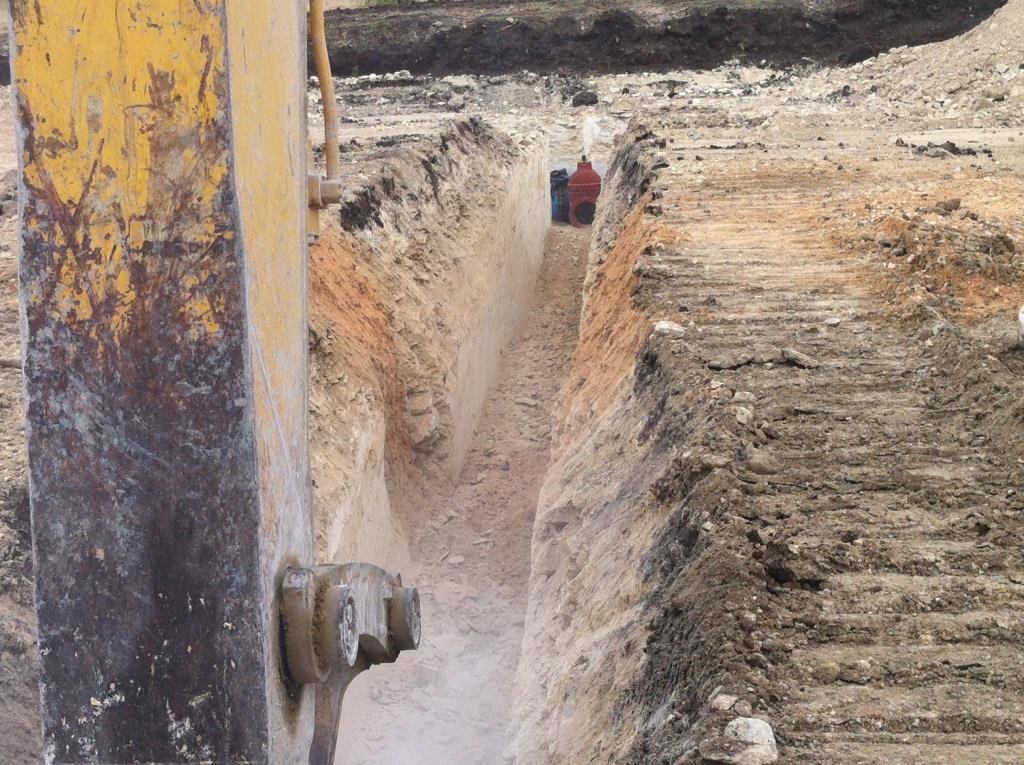

These products rip rock up to 4 times faster than a hammer. They rip 10 times faster than a single pointed ripper. They greatly exceed all other designs of frost rock, or ripper buckets on the market. They rip to all depths leaving relatively flat bottom and side walls in the trench. The staggered shanks on an arc hit one at a time allowing the maximum breakout to be applied to each tooth. The tooth force is about 8 times that of a standard 5 tooth bucket because the shanks are short. Also, the shanks are the same distance from the stick pivot, so the shanks rip a relatively flat bottom.
Why should I believe that it works?
These products have been proven over the past 13 years and have been
granted leters patents in the US and in many countries throughout
the world. These designs won several design awards. Many customers
have claimed this is the best attachment I've ever bought.
See the endorsements
See the endorsements
Breaks rock and frost 4 times
faster than a hammer,
at a fracton of the cost.
Please know that adding extra plates or adding hard-facing is not necessary, and not recommended. Hard-facing can actually cause damage to the HARDOX material by inducing tiny cracks in the material, and will thus void our warranty. If any welding is required or desired, please contact LEA, Inc. Engineering for the special HARDOX welding procedure.
